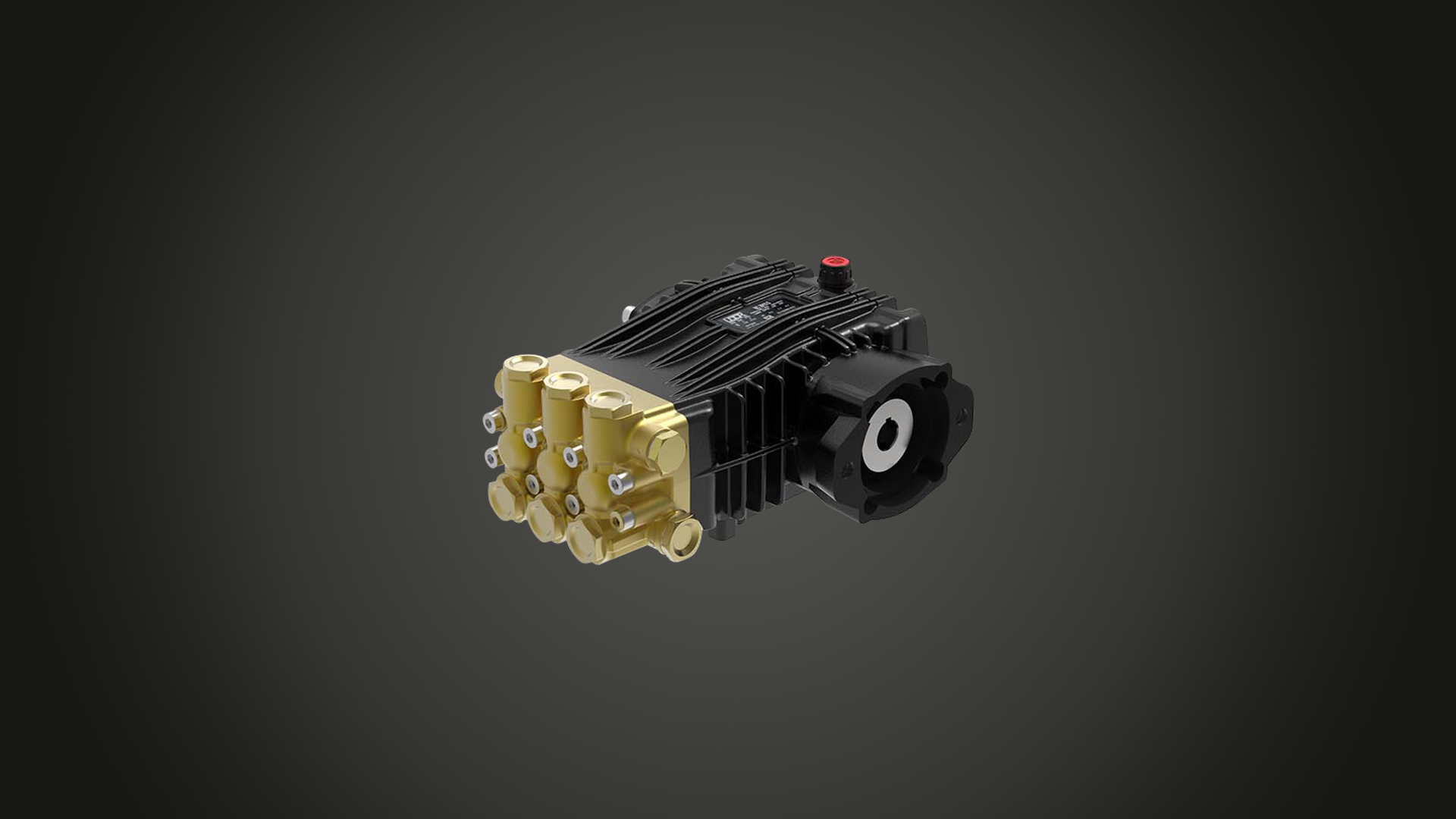

HYP-BC 15/20 T MI + PLM 25
Flow rate:
da 15 a 21 l/min
Pressure MAX:
Max. 200 bar
RPM:
1450
Reciprocating plunger pump, 3 solid ceramic plungers, forged reinforced brass head, aluminum die cast crankcase with cataphoresis coating, double sealing system, hardened steel crankshaft, oversize roller/ball bearings.
The pumps of this series have a 3/4" hollow shaft, they produce a flow from 15 to 21 l/min, they operate at max 200 bar
The pump with MI shaft type (hollow shaft) can be directly coupled to hydraulic motor.
Series
Serie B
Flow rate
from 15.0 to 21.0 l/min
from 4.0 to 5.5 GPM
from 4.0 to 5.5 GPM
Pressure MAX
200 bar • 2900 PSI
RPM
1450
Power MAX
10.8 HP • 8.1 kW
Weight
9.5 Kg
TECHNICAL SPECIFICATION
| CODICE CODE | MODEL | TRIPLEX PUMP | POWER | PUMP | HYDRAULIC MOTOR CC | HYDRAULIC MOTOR | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| FLOW | PRESSURE | TORQUE | SPEED | FLOW REQUIRED | PRESSURE REUQIRED | |||||
| l/ | bar | HP | kW | Nm | RPM | l/min | bar | |||
| RWW015M | HYP-BC 15/20 T MI + PLM 25 | 15.0 | 200 | 8.0 | 6.0 | 39.5 | 1450 | GEAR 25 cc - SAE "A" | 36.3 | 120 |
| RWW021MI | HYP-BC 21/20 T + PLM 25 | 21.0 | 200 | 11.5 | 8.5 | 56 | 1450 | GEAR 25 cc - SAE "A" | 36.3 | 175 |
